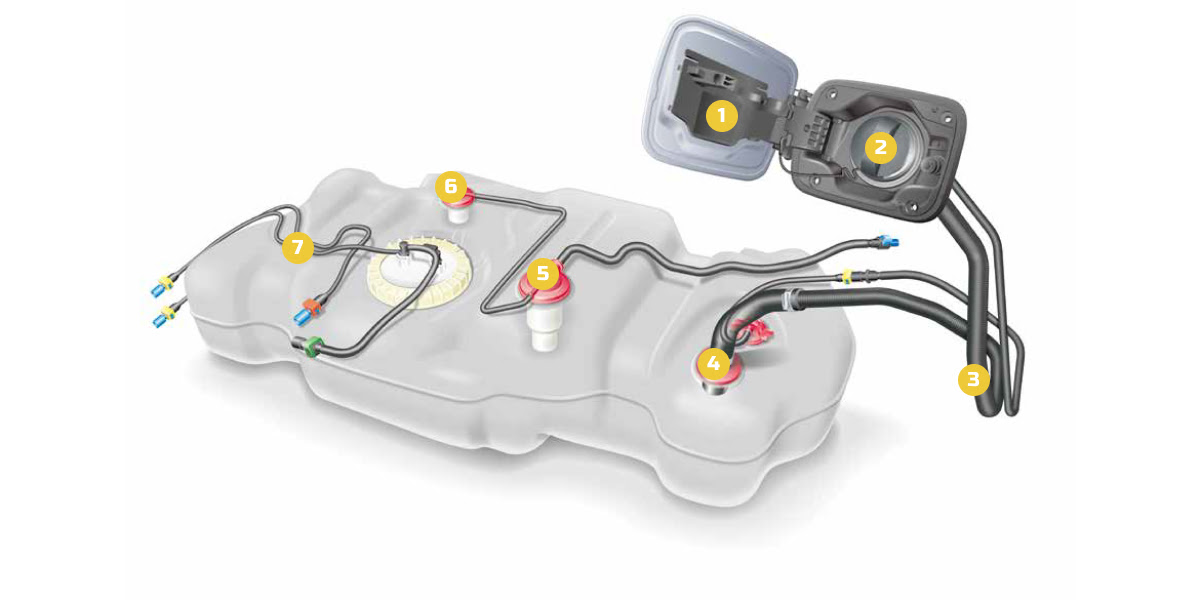

Fuel Tank Peripheral Parts

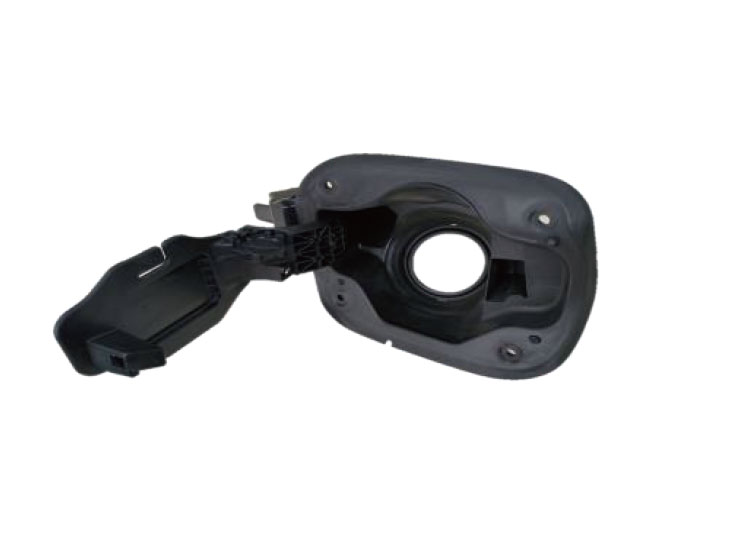

• 1Fuel Filler Lid

  In addition to protecting the fuel intake port from dust and water, fuel filler lids improve the aesthetic quality of the body and the ease of use of the fuel intake cover.

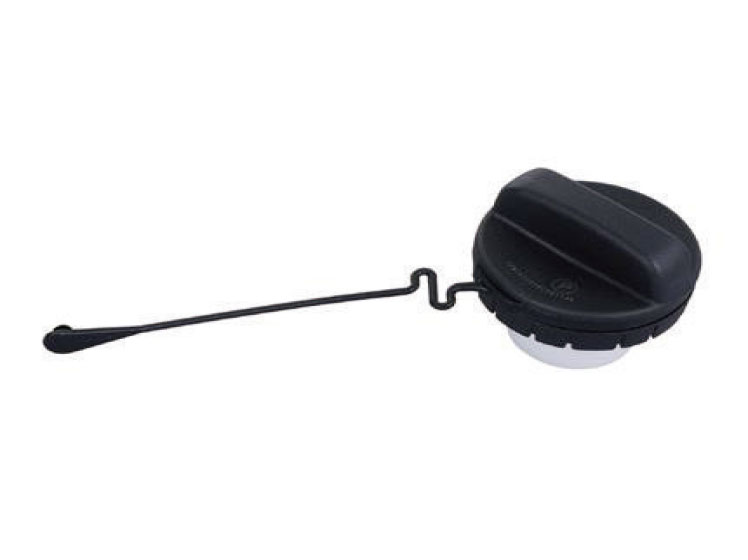

• 2Fuel Filler Cap

  The caps keep the fuel clean by sealing off the opening of fuel filler pipe. They also prevent fuel vapor release from the vehicle

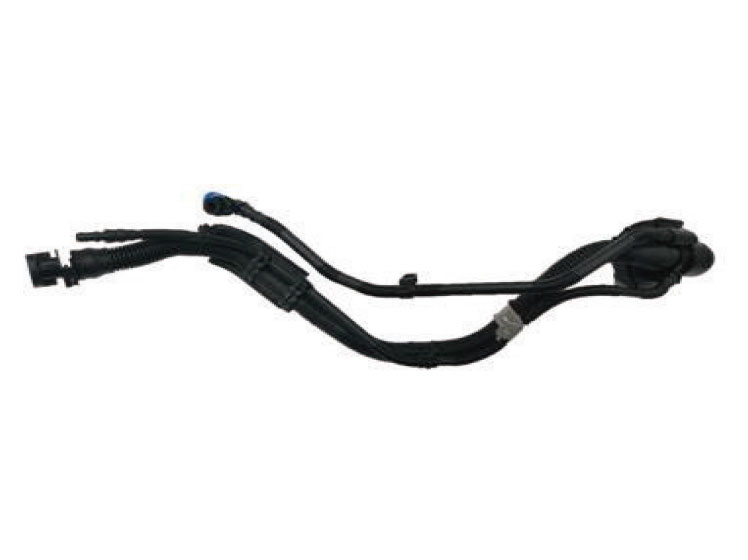

• 3Plastic Fuel Filler Pipe

  These pipes convey fuel to the fuel tank. They function for the smooth flow of fuel and to prevent backflow.

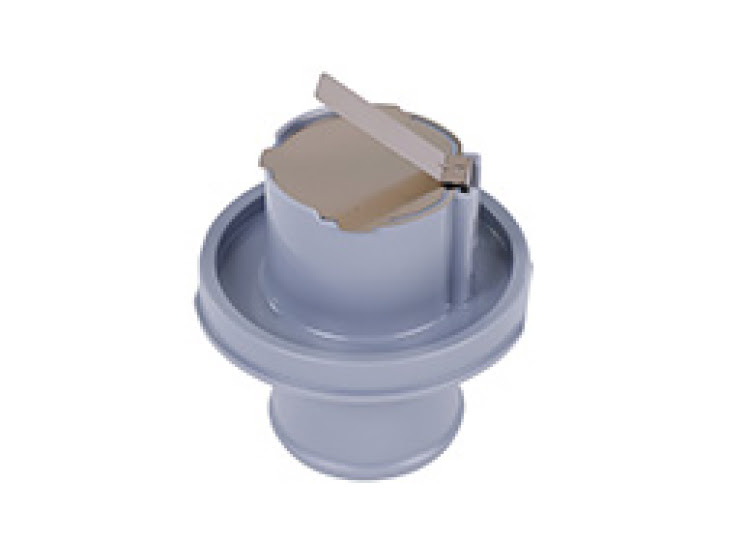

• 4Inlet Check Valves

  Check valves prevent fuel from flowing backwards out of the fill tube opening when the tank becomes full.

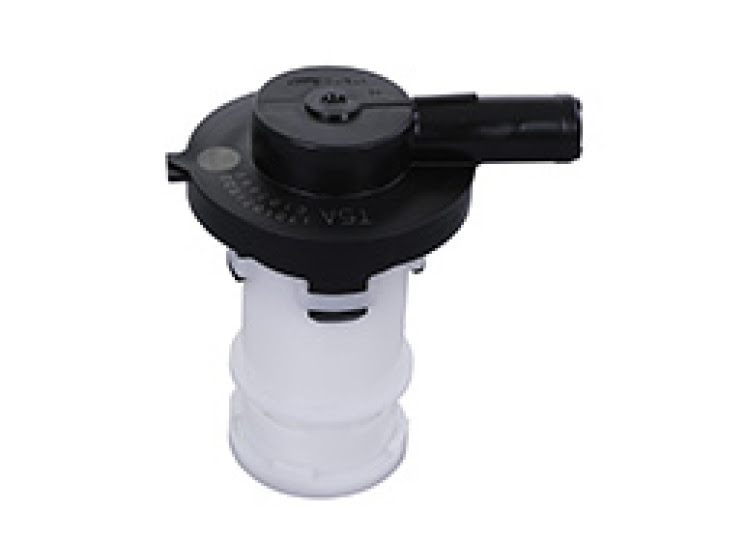

• 5Fill Limit Vent Valve

  These valves restrict the amount of fuel when the tank becomes full, functioning to seal and prevent variation in fuel levels.

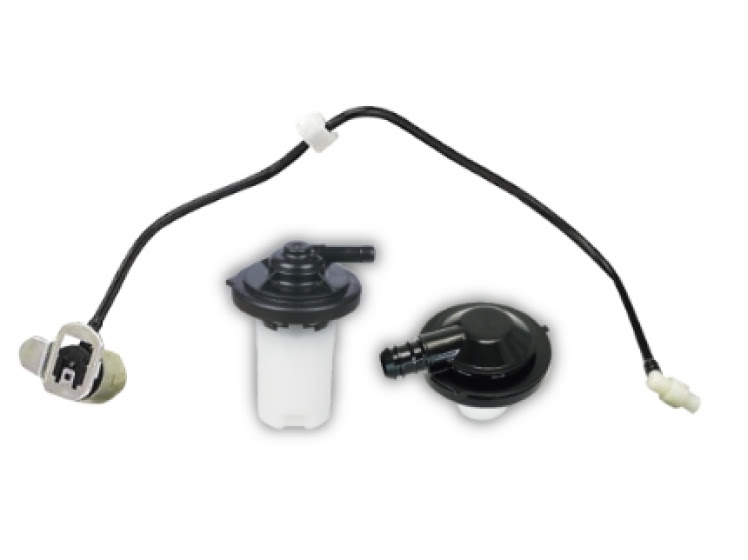

• 6Roll Over Valves

  Rollover valves have a sealing function that prevents fuel spills from the fuel tank in the event of a vehicle rollover.

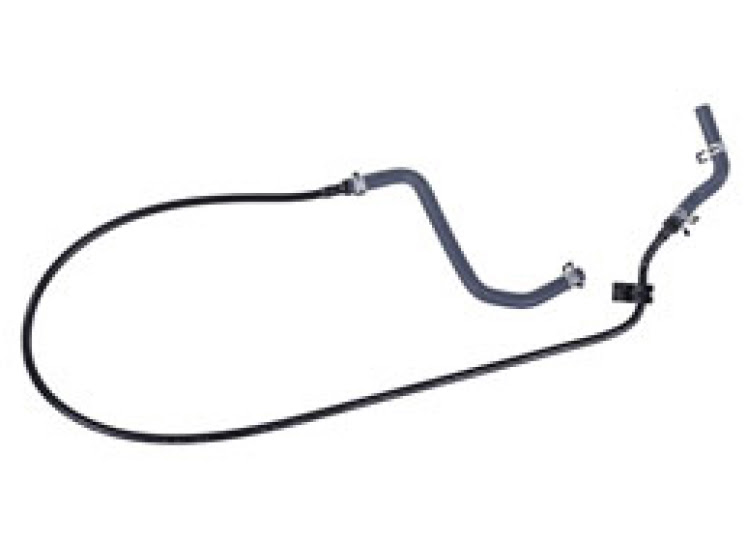

• 7Fuel Hoses and Tubes

  These rubber and plastic pipes send fuel to the engine and fuel vapor to the atmosphere via the fuel vapor cleaner.

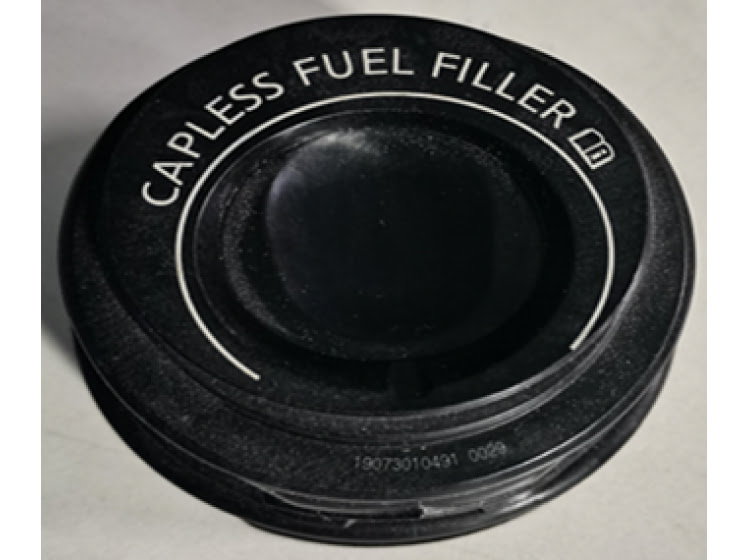

• 8Capless Fuel Filler

  A device designed to make refueling more convenient by simply inserting the nozzle without opening or closing the filler cap when refueling.



Chassis and Drive Train Parts

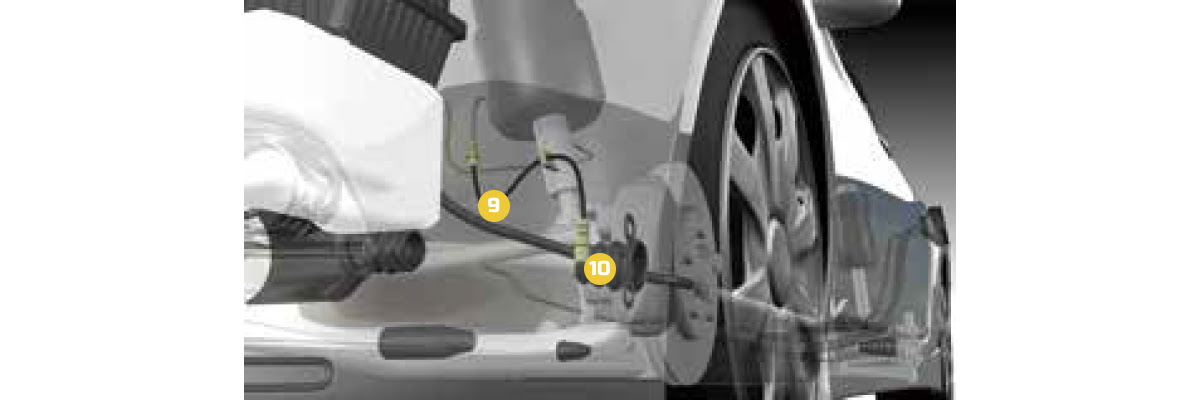

• 9Brake Hoses

  These hoses transmit hydraulic pressure in the body-side brake system to the wheel-side brake system. They are flexible and highly durable so that they can follow the movement of the wheels.

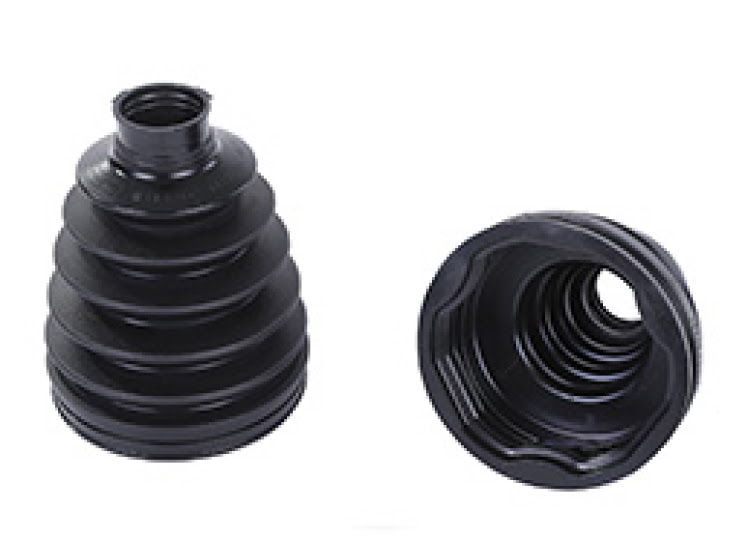

• 10Constant velocity joint boots

  These boots have a cylindrical, bellows shape and are used to cover constant velocity joints, which turn and flex. They keep joint lubricating grease in and water and dirt out.



• 11Transmission Cover

  Cover for gear noise reduction in the transmission.



Engine Peripheral Parts

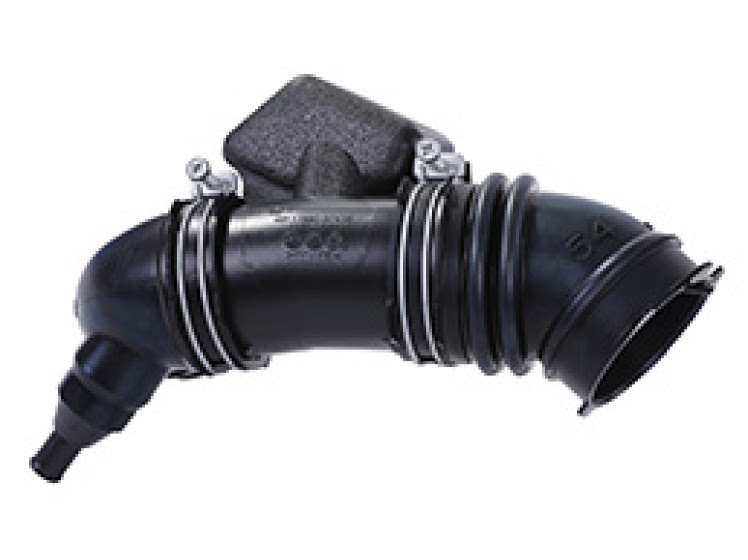

• 12Air Cleaner Hoses and Resonators

  Air cleaner hoses are used in providing the clean air needed for engine revolution. Resonators reduce the noise that is generated when air is taken in.

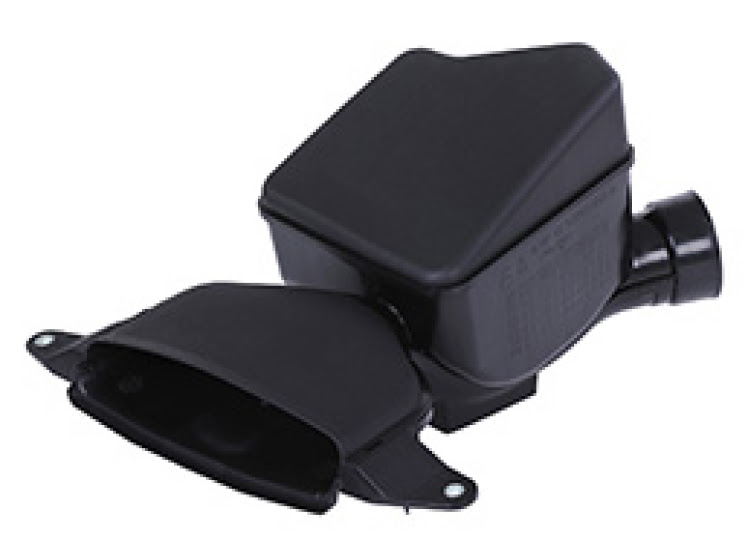

• 13Noise Absorbing Air Intake Ducts

  These ducts take in outside air needed in engine revolution. Intake noise is reduced with the use of air permeable members in part of the duct.

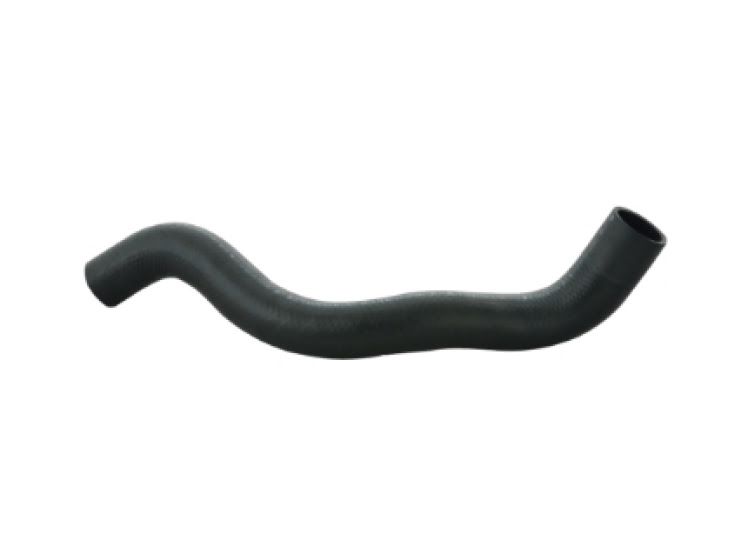

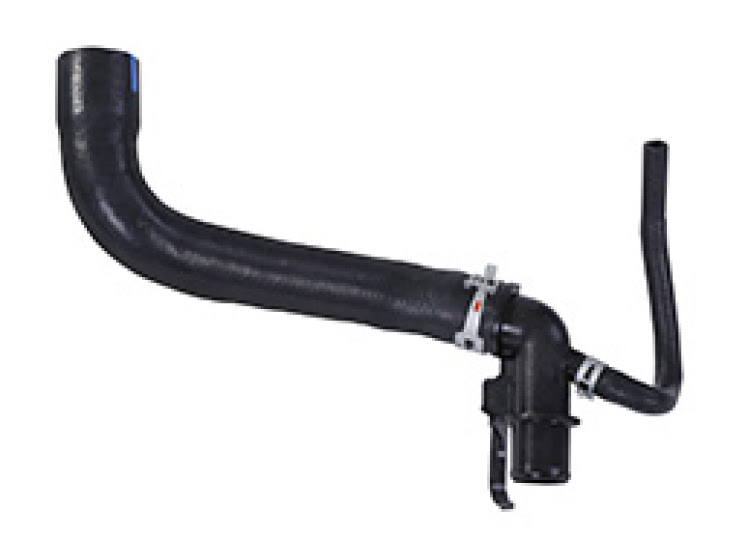

• 14Radiator Hoses

  These hoses connect the engine and radiator for the circulation of the coolant that is needed to cool the engine.



• 15Turbo Ducts

  Turbo ducts direct supercharging air to the engine by turbo to improve engine power. They are pressure and heat resistant.

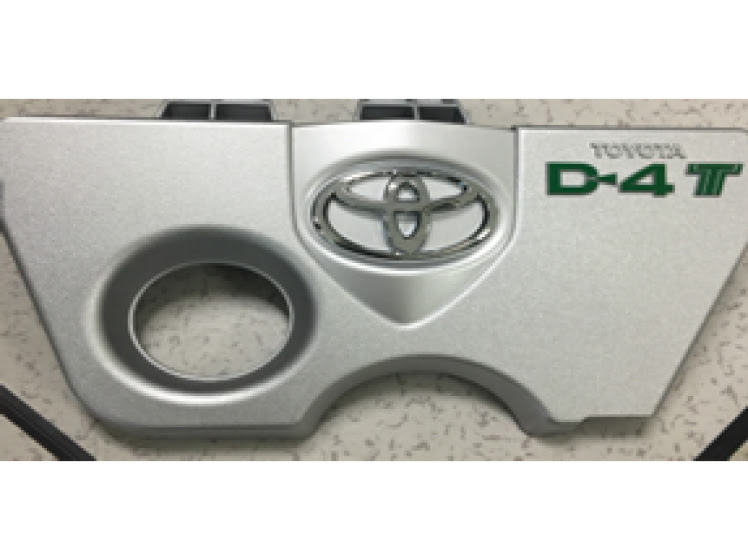

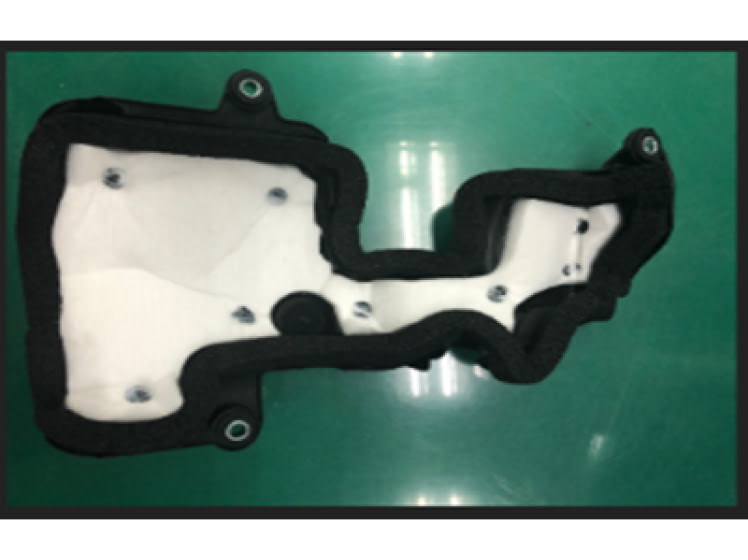

• 16Engine Covers

  By covering the top of the engine, these covers make the engine compartment more aesthetically pleasing and reduce noise from the engine itself.
